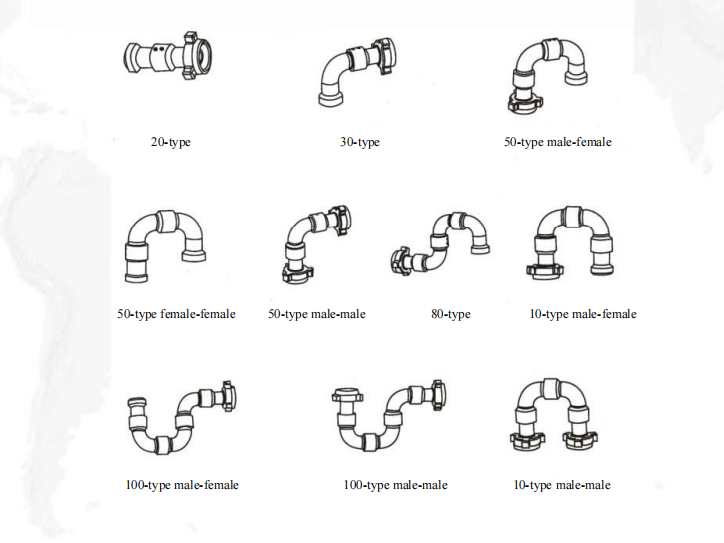

The active elbow produced by Our Company is a kind of metal pipe fittings mounted with the ball bearing with the specification of 1”-4” and the rated working pressure of 14-140Mpa (2000psi ~ 20000psi). Our Company provides a variety of active elbows and maintenance kit available at room temperature, low temperature and sulfur gases containing conditions.
The active elbow consists of long radius and short radius type. Specifically, the long radius active elbow has smooth bore, which can minimize the fluid resistance during flowing through and the erosion-corrosion resistance property against the wall thickness at the turning is superior to that of the short radius type. However, the short radius type is also used due to the restrictions of on-site installation or low pressure.
