Description
The RuTai composite screen tube achieves superior performance through two key components: high-performance filtration media and an integrated efficient structure. The composite screen tube consists of a base tube, multiple layers of filtration screens, and an outer protective sleeve.
●Base pipe: Petroleum-specific pipe with an opening rate of 6-7%
●Common steel grades: L80,13Cr, Super 13Cr
●Common mouth shapes: APl and special clip shapes
●Drainage layer: 5 mesh
●Common materials: SS304,316L
●Filter layer: sintered or woven
●Outerwear: 20% opening rate

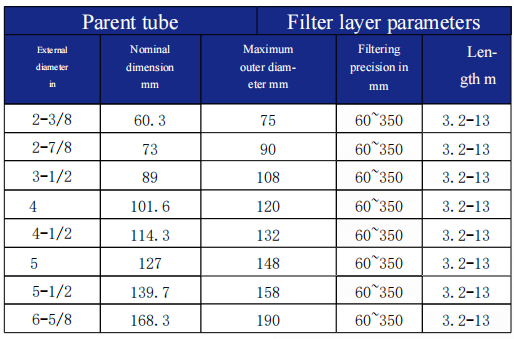

Specification parameters
